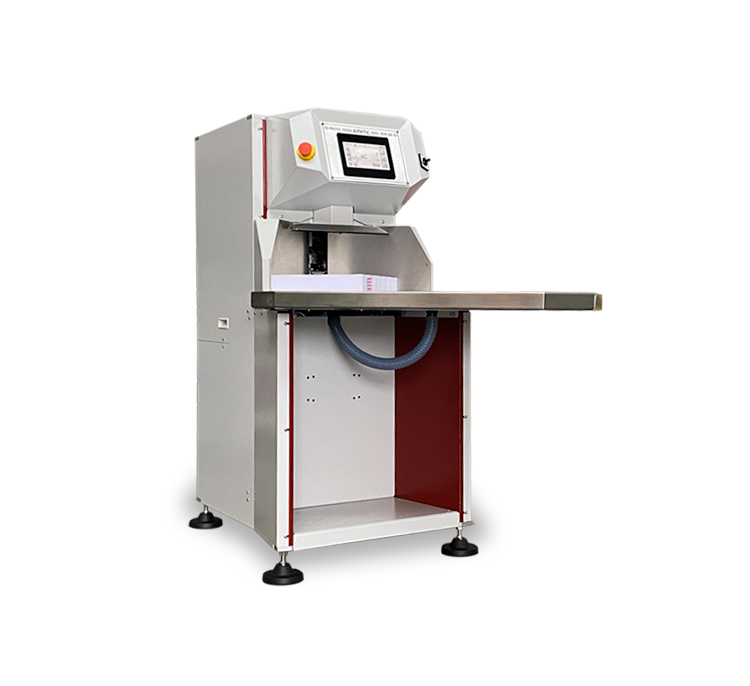

SHEET COUNTING MACHINE
Protec ADR32 ST2
Heavy-duty sheet counter that counts and batches paper, plastic, and cardboard — fast, exact, every batch.
- ADR32 patented counting technology
- Up to 3,000 sheets/min
- Batches without slowing the count
- Handles 40–800 GSM
- Stainless steel table, with or without air blowers
Key Features
ADR32 Patented Technology
Twin-vacuum counting reads each sheet without marking, scratching, or deforming it — even at top speed.
3,000 Sheets per Minute
Built for your highest-volume runs, with no operator pacing and no manual recounts downstream.
Batch at Full Speed
Insert batch separations on the fly without dropping the counting rate — throughput stays where you set it.
40–800 GSM Range
From light stock to heavy board, one machine covers paper, plastic, and cardboard across your jobs.
Stainless Steel Working Table
Heavy-duty surface available with or without air blowers for clean sheet handling.
Built for Industrial Use
A production-floor machine designed for continuous operation, not a lab counter.
Technical Specifications
PARAMETER
VALUE
Speed / Capacity
Up to 3,000 sheets/min
Material Range / Sizes
40–800 GSM
Compatible Materials
Paper, plastic, cardboard
Counting Technology
Patented ADR32 (no sheet marking)
Batching
At full speed, no rate loss
Head Configurations
L: 40–300 · H: 200–800 · W: 40–800 GSM
Working Table
Heavy-duty stainless steel (optional air blowers)
Construction
Industrial-grade, continuous production
See It in Action
Compatible Materials & Applications
- Paper
- Plastic
- Cardboard
Industries
- Printing
- Security Printing
- Fulfillment
