CONVEYOR & ACCESSORY
FCT-120

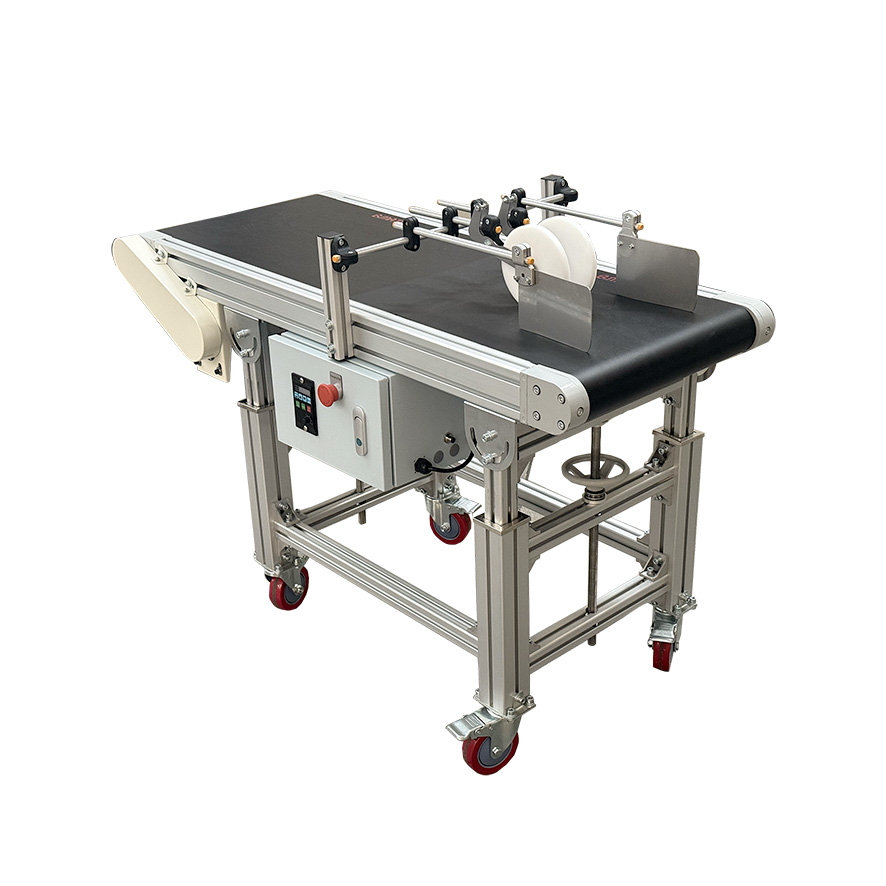

A 1.2 m outfeed conveyor that keeps product aligned off the line — with an optional vacuum belt for small or light pieces.
- 1.2 m outfeed conveyor
- Normal or vacuum belt option
- Height adjustable up to 900 mm
- Adjustable speed up to 30 m/min
- Wheels and joggers align fed product
Key Features
Vacuum Belt Option
Choose a vacuum belt for reliable grip on small or light products that drift on a standard belt.
Keeps Product Aligned
A group of wheels and joggers aligns product as it leaves the feeder, ready for marking or scanning.
Height & Speed Adjustable
Adjustable up to 900 mm and up to 30 m/min to match the rest of your line.
Compact 1.2 m Length
Fits tighter line layouts where a full-length conveyor won't.
Technical Specifications
PARAMETER
VALUE
Speed / Capacity
Up to 30 m/min (adjustable)
Length
1.2 m
Belt Options
Normal or vacuum belt
Height
Adjustable up to 900 mm
Alignment
Wheels and joggers
Material Range / Sizes
From 75 GSM up to materials 100 mm thick · 350 mm (W) × 220 mm (L)
Pairs With
F350 Counter SC / F350 Counter SC L
See It in Action
Compatible Materials & Applications
- Paper
- Plastic
- Cardboard
Industries
- Fulfillment
- Pharma
- Food
- Printers
